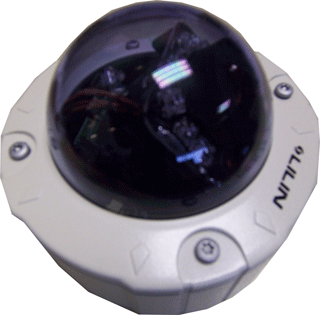

CM-SC1009-HAV-VAN
|
Dual Voltage Varifocal Vandal-Proof IR Dome
- Withstand a blow from a 10 lbs sledgehammer
- High Definition Manual Varifocal Lens
- Automatic switch from color mode to monochrome
- AC 24V/ DC 12V Dual Voltage Input
|
|
Specifications
|
ITEM
|
CM-SC1009-HAV-VAN
|
|
Image Sensor
|
Sony 1/3" Super HAD CCD Sensor
|
|
CCD Effective Pixels
|
768(H) x 494(V)
|
|
Scanning System
|
2:1 Interlace
|
|
Min. Illumination
|
0.1Lux / F1.2, 0Lux with Infrared
|
|
S/N Ratio
|
>50dB (AGC OFF)
|
|
Auto Gain Control
|
36dB Variable Gain
|
|
White Balance
|
ATW
|
|
Gamma Correction
|
0.45
|
|
Resolution
|
Color 480 TVL, Mono 520 TVL
|
|
Video Output
|
CVBS1.0 Vp-p, 75ohm
|
|
Aperature Correction
|
Horizontal / Vertical
|
|
Back Light Compensation
|
Auto
|
|
Operating Temp
|
-10°C to 50°C (14°F to 122°F)
|
|
Power Consumption
|
6.2W (DC12V), 4.5W (AC24V)
|
|
Dimension
|
Dome: 91.8mm, Base & Fix Ring: 136mm x 55mm
|
|
Weight
|
1200g
|
|
|
