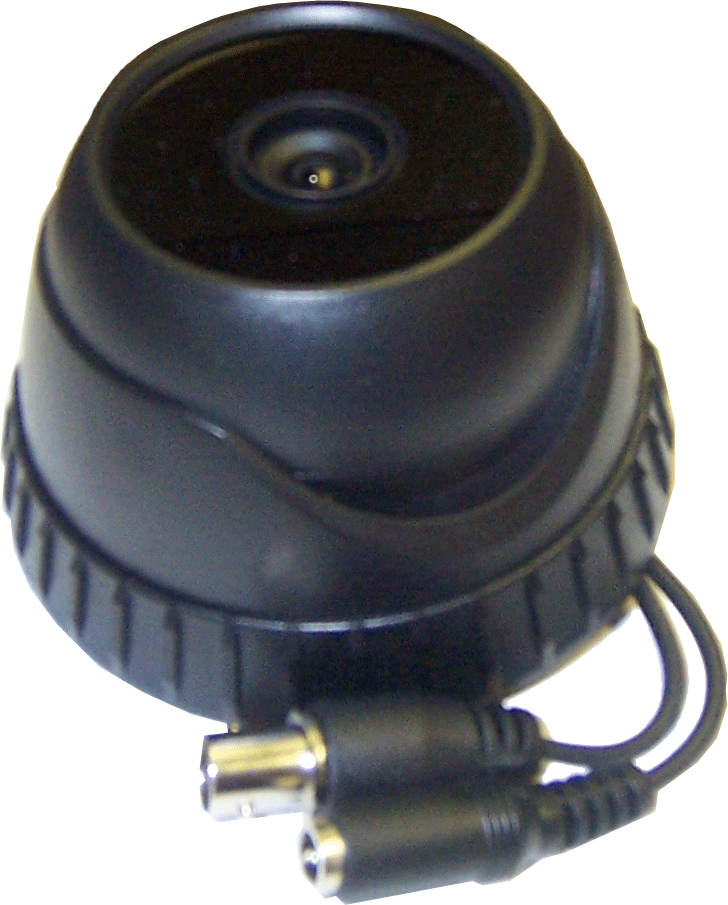

CM-SC1009-3.6IR
|
Infrared Mini Dome Camera
High-sensitivity dome cameras with built-in infrared LED of effective range up to
45 feet. Day and night features for 24-hour surveillance.
|
|
Specifications
|
Item
|
Model 1
|
Model 2
|
|
Image Sensor
|
1/3" Color CCD image sensor
|
|
CCD Effective Pixels
|
NTSC: 512(H) x 492(V)
|
|
Sensitivity
|
0.4 Lux, 0 Lux (IR ON)
|
|
S/N Ratio
|
> 48dB
|
|
Resolution
|
Standard
|
|
Video Output
|
1.0 Vp-p composite video at 75ohm
|
|
Electronic Shutter
|
1/60 - 1/100,000 sec
|
|
IR Led
|
14 units
|
21 units
|
|
IR Effective Range
|
Over 30 feet
|
Up to 45 feet
|
|
Lens
|
f3.6mm / F2.0
|
|
Lens Angle
|
92.6°
|
|
Power Source
|
DC 12V
|
|
Dimension (mm)
|
94.1 x 70.7
|
|
|
