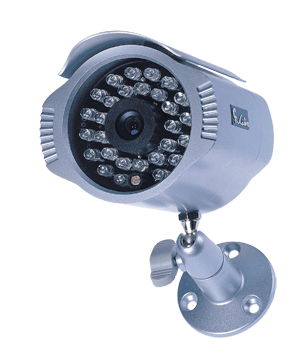

Weather-Proof Infrared Color Bullet Camera
|
This is an IP67 rated weather proof camera that uses 14 Light Emitting Diodes to
provide a good level of illumination up to 50 feet. An integral photocell automatically
activates LED and switch from color to monochrome video when light drops below 20
Lux.
An aluminum bracket incorporates a 1/4" UNC bolt that can be fixed and locked on
either the rear top or bottom of the camera by tightening the knob and is adjustable
in a full range of directions, allowing ceiling mounting and wall mounting for camera.
A choice of 3.6 , 6.0mm or 8.0 mm lens cover the most popular viewing angles and
the electronic shutter maintains perfect video levels in variable lighting conditions.
Cabling could not be easier, the video cable is prewired with a female BNC and the
low voltage power cable is fitted with a female jack socket, matching the connector
on the provided 12VDC PSU.
CM-SC1020-3.6IR - Standard Resolution Model (380 TVL) with 3.6mm Lens.
CM-SC1020-6IR - Standard Resolution Model (380 TVL) with 6mm Lens.
CM-SC1020H-3.6IR - High Resolution Model (480 TVL) with 3.6mm Lens.
CM-SC1020H-6IR - High Resolution Model (480 TVL) with 6mm Lens.
CM-SC1020H-8IR - High Resolution Model (480 TVL) with 8mm Lens.
|
|
|
Specifications
|
Item |
CM-SC1020-IR |
CM-SC1020H-IR |
|
Image Sensor |
1/3" CCD |
|
Image Size |
6.0(H)x4.96(V)mm |
|
CCD Effective Pixels |
510(H) x 492(V) |
768(H) x 494(V) |
|
Scanning System |
525 Lines, 60 fields/sec |
|
Sensitivity |
0.5 Lux |
1.0 Lux |
|
S/N Ratio |
>50dB (AGC OFF) |
|
Auto Gain Control |
36dB Variable Gain |
|
White Balance |
ATW |
|
Aperture Correction |
Horizontal, Vertical |
|
Power Comsumption |
3.0W |
|
Back Light Compensation |
Auto |
|
Resolution |
380 Lines |
480 Lines |
|
Video Output |
1.0 Vp-p composite video at 75ohm |
|
Electronic Shutter |
1/60 - 1/100,000 |
|
IR Led |
14 unit 850nM LED, Distance 50ft |
|
View Angle/Beam Spread |
56°(6mm lens),92°(3.6mm lens) / 30° |
|
Water Resistance |
IP67 |
|
Operating Temp |
-10°C to 50°C (14F°F to 122°F) |
|
Dimensions |
65 (diameter) x 67.7 (length) mm |
|
Weight |
300g |
|
|
|
|
|
